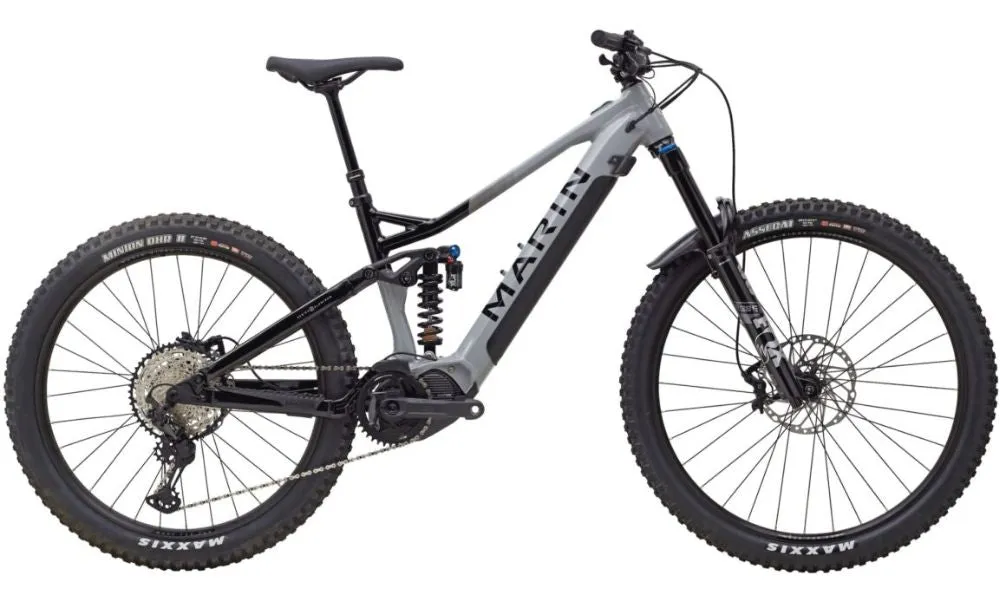

Marin 2022 Alpine Trail E2
MOUNTAIN BIKING WITH A BOOST
Beyond capable, both up and down, in even the most challenging terrain.
The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down. Maximising your fun!
Specifications
Marin 2022 Alpine Trail E2
Frame
Colour: Grey/BlackFrame: All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork: Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Shock: Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb
Drivetrain
Crankset: e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T, e13 Plus Chainguide, Aluminum Plate
Pedals:
Chain: KMC E12S, EBike Specific Chain
Bottom Bracket: NA
Rear Derailleur: Shimano XT 8100 12-Speed, SGS
Front Derailleur: NA
Derailleur Shifter: Shimano SLX 7100 12-Speed, I-Spec EV
Freewheel/Cassette: Shimano SLX M7100, 12-Speed, 10-51T
Drive Unit: Shimano Steps EP8 Drive Unit, 250W, 85Nm
Battery: BT-8036, Internal 630Wh
Wheels
Tires: [F] Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO , Tubeless Compatible [R] Maxxis Minion DHR II 27.5x2.8”, 3C Maxx Terra, EXO , Tubeless CompatibleWheels/Rims: [F] Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width [R] Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible
Hubs: [F] Shimano MT-410B, 110x15mm, Centerlock Disc, 32H [R] Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
Braking System
Brakes: [F] Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor [R] Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed SensorBrake Levers: Shimano SLX Levers, I-Spec EV
Other
Handlebar: Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree BackStem: Marin CNC Stem, 35mm Length, 35mm Bar Bore
Saddle: Marin eMTB Saddle
Seat Post: X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Display" SC-E8000 Display
Geometry
Marin 2022 Alpine Trail E2
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 613 | 622 | 631 | 640 |
| REACH | 445 | 465 | 485 | 505 |
| HEADTUBE ANGLE | 63° | 63° | 63° | 63° |
| HEADTUBE LENGTH | 100 | 110 | 120 | 130 |
| SEATTUBE ANGLE | 78° | 78° | 78° | 78° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 575 | 597 | 619 | 641 |
| BB HEIGHT | 340.5 | 340.5 | 340.5 | 340.5 |
| BB DROP | 28 | 28 | 28 | 28 |
| CHAINSTAY | 435 | 435 | 435 | 435 |
| WHEELBASE | 1215 | 1239 | 1264 | 1288 |
| STANDOVER HEIGHT | 681.6 | 681.4 | 686.8 | 689.8 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 50 | 50 | 50 | 50 |
| CRANK LENGTH | 165 | 165 | 165 | 165 |
All lengths in millimeters
